Name: FSG203D, 24V DC Micro Magnetic Gear Pump, SS316L Stainless Steel, 10 Bar
Brand: AMG Hydraulic Engineering
SKU: 1600512429986
Price: 861.00 AUD
Availability: InStock

FSG203D, 24V DC Micro Magnetic Gear Pump, SS316L Stainless Steel, 10 Bar

$861.00

Shipping calculated at checkout.

Product Overview

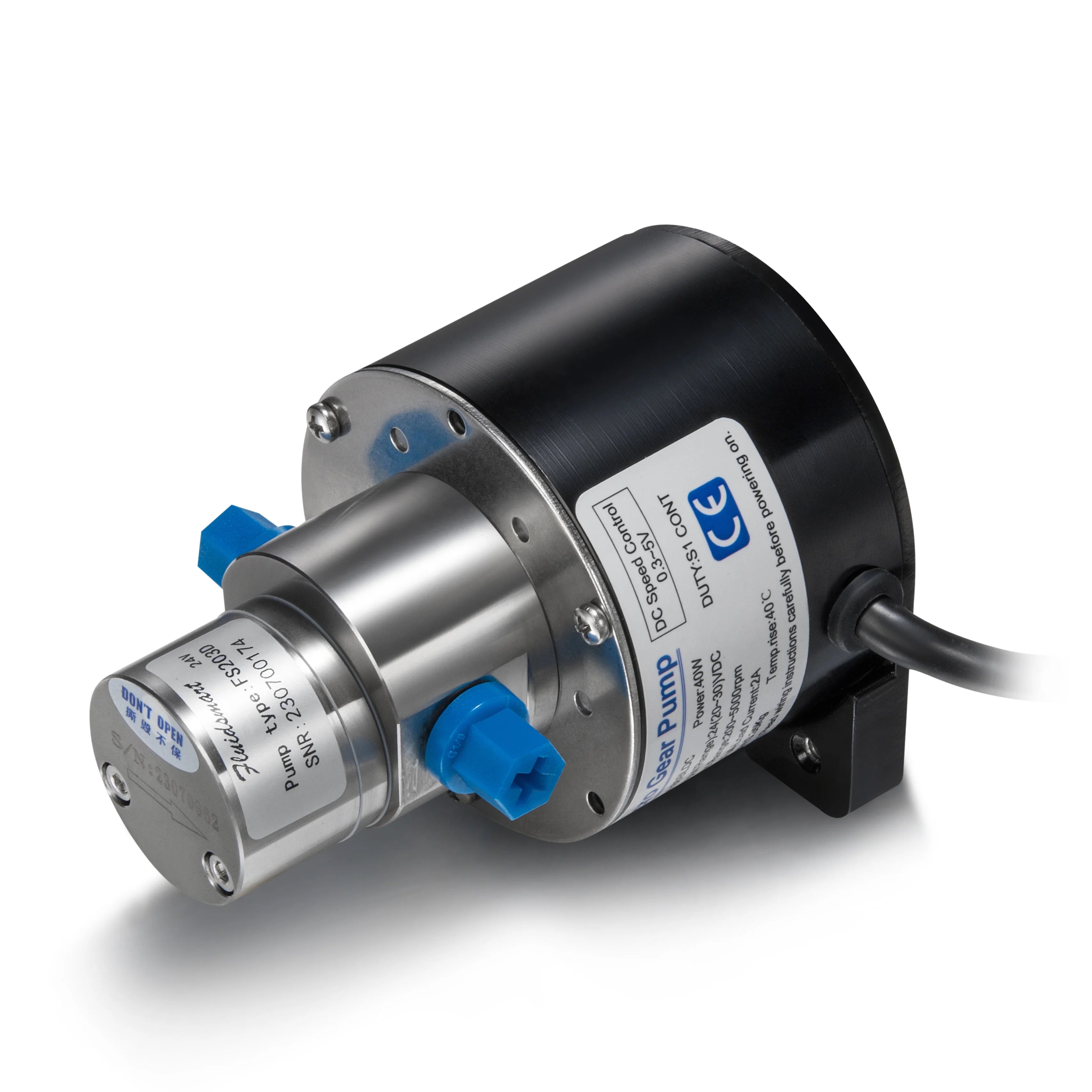

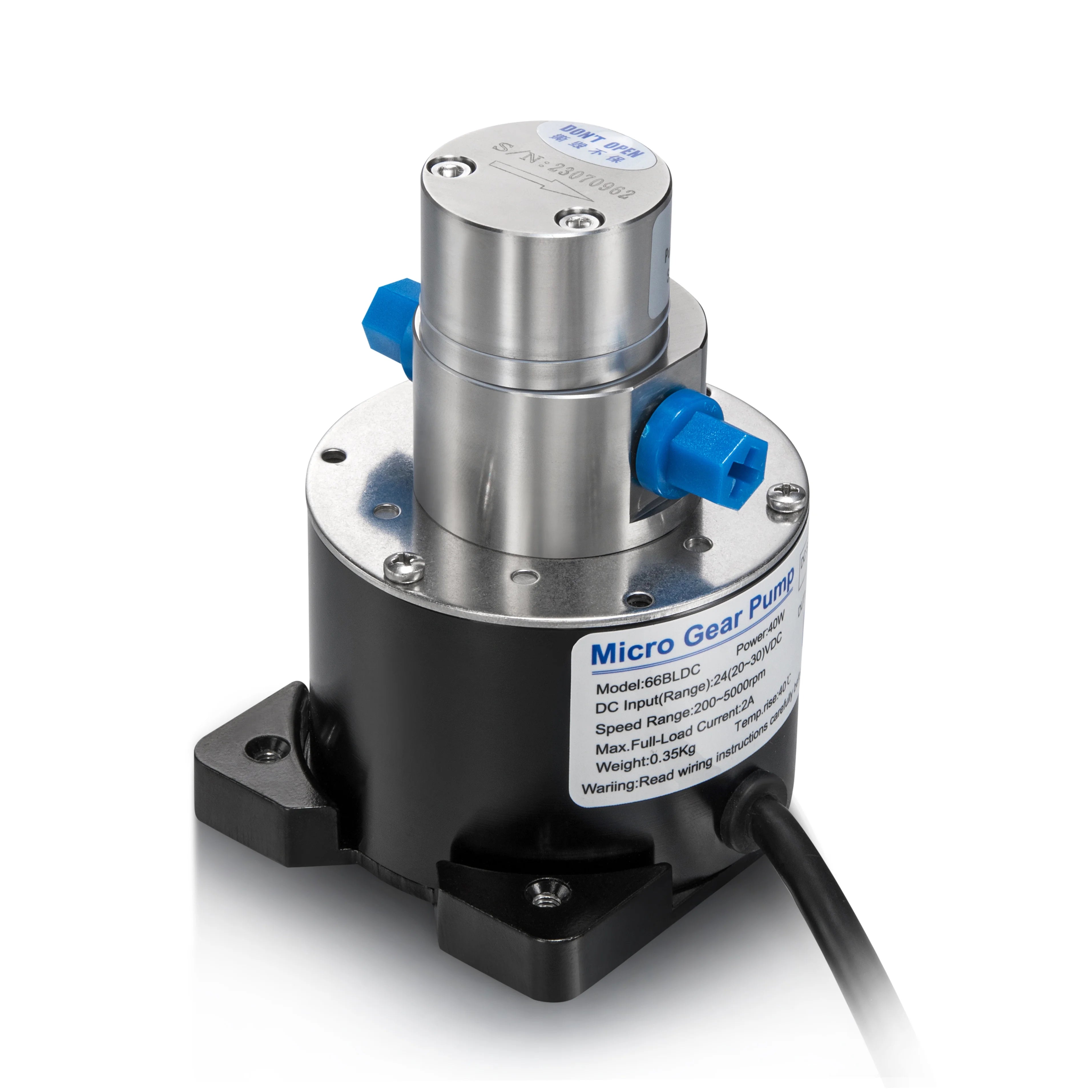

The FSG203D 24V DC micro magnetic gear pump is a compact precision pump designed for accurate liquid transfer in laboratory, medical, and industrial systems. Built with SS316L stainless steel and a magnetic drive structure, it ensures contamination-free operation, corrosion resistance, and reliable long-term performance.

With a maximum pressure of 10 bar and precise gear-driven flow, the FSG203D is ideal for dosing, circulation, and controlled fluid transfer applications requiring stability and accuracy.

Technical Specifications

Specification	Value
Product Name	24V Micro Magnetic Gear Pump
Model	FSG203D
Pump Type	Magnetic Gear Pump
Structure	Gear Pump
Pressure	Low Pressure
Max Continuous Pressure	10 Bar

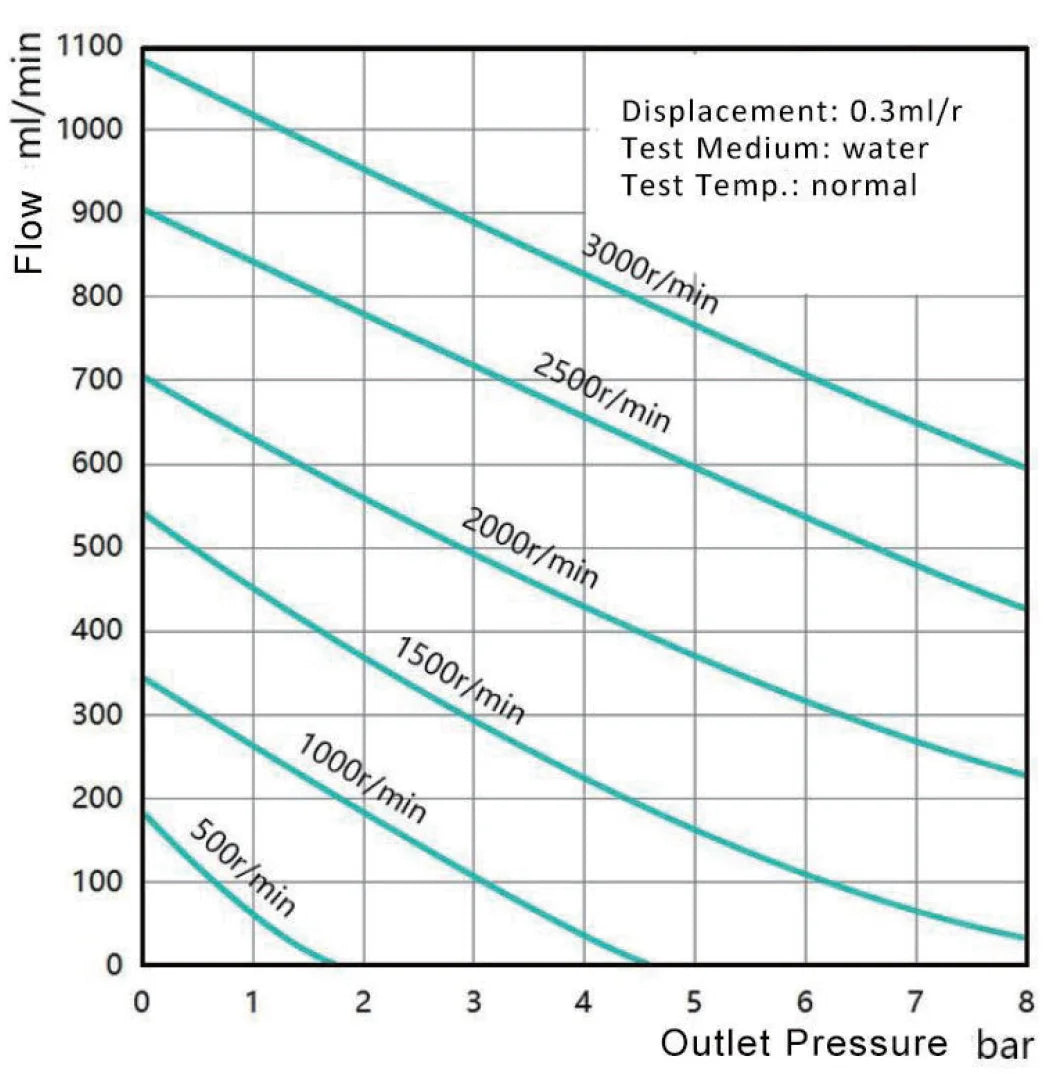

Flow Rate	Up to 600 ml/min
Flow per Turn	0.3 ml/r
Speed Range	300 – 4000 RPM
Motor Type	Brushless DC Motor
Motor Power	40W
Power Source	Electric
Voltage	24V DC
Sealing Material	FKM
Pump Body Material	SS316L Stainless Steel
Connector Size	G1/8

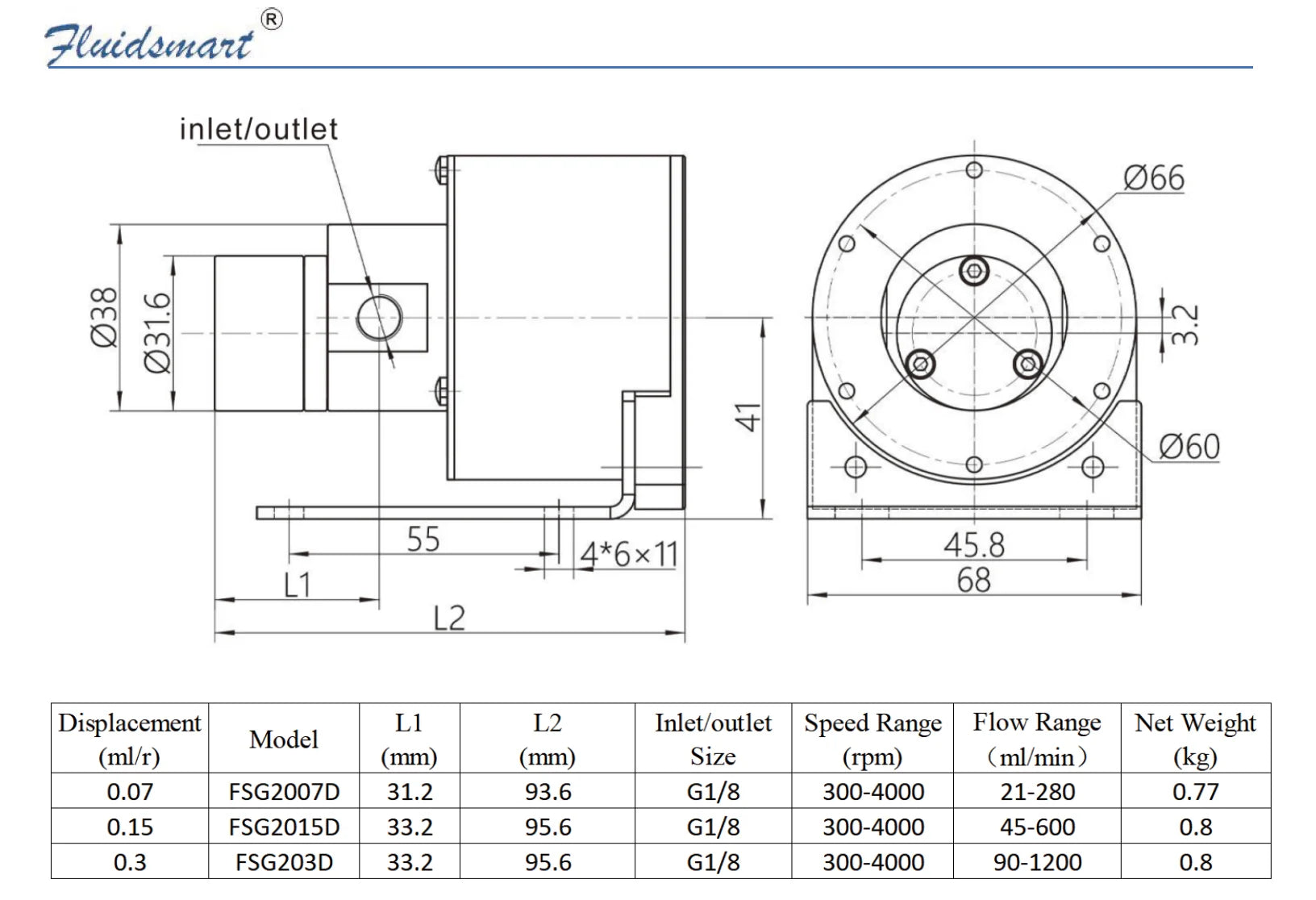

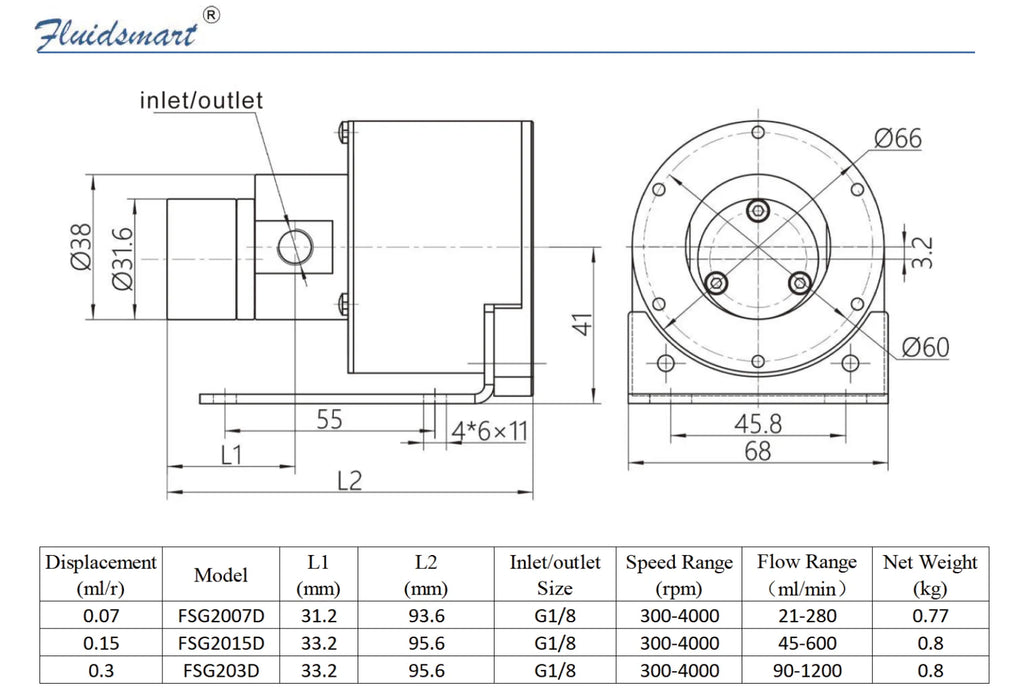

Dimensions	96 × 66 × 72 mm
Warranty	12 Months

Key Features

Magnetic drive design reduces leakage risk
SS316L stainless steel for corrosion resistance
Brushless DC motor for smooth operation
Compact micro pump for tight installations
Precise and stable fluid delivery
Low maintenance and long service life

Typical Applications

Laboratory fluid handling
Chemical dosing systems
Medical equipment
Cooling systems
Analytical instruments
Precision liquid transfer

Shipping & Support

Fast dispatch - Australia & World wide shipping
Technical assistance available
12-month warranty
