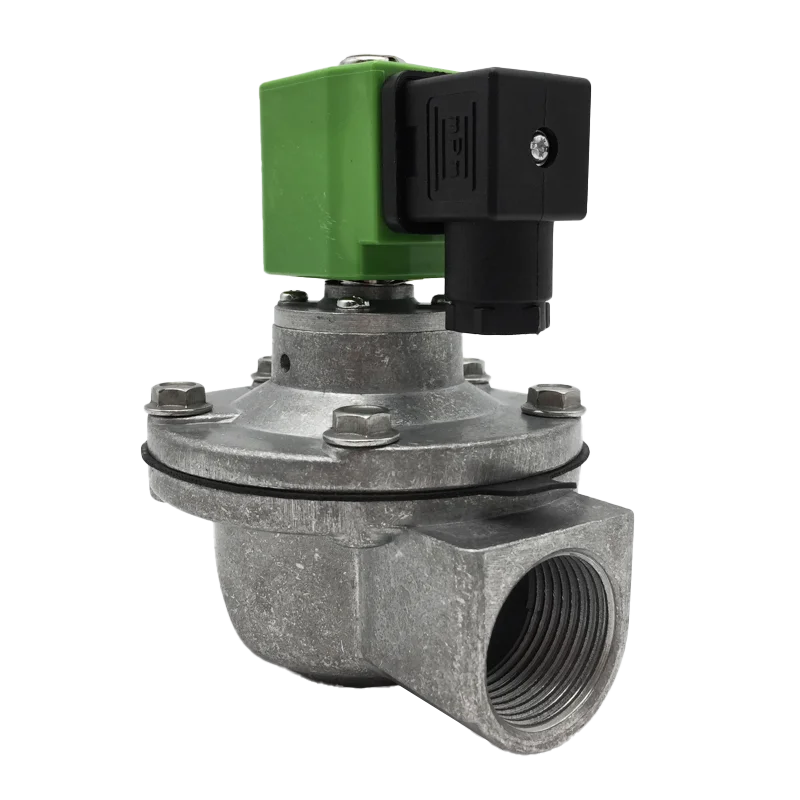

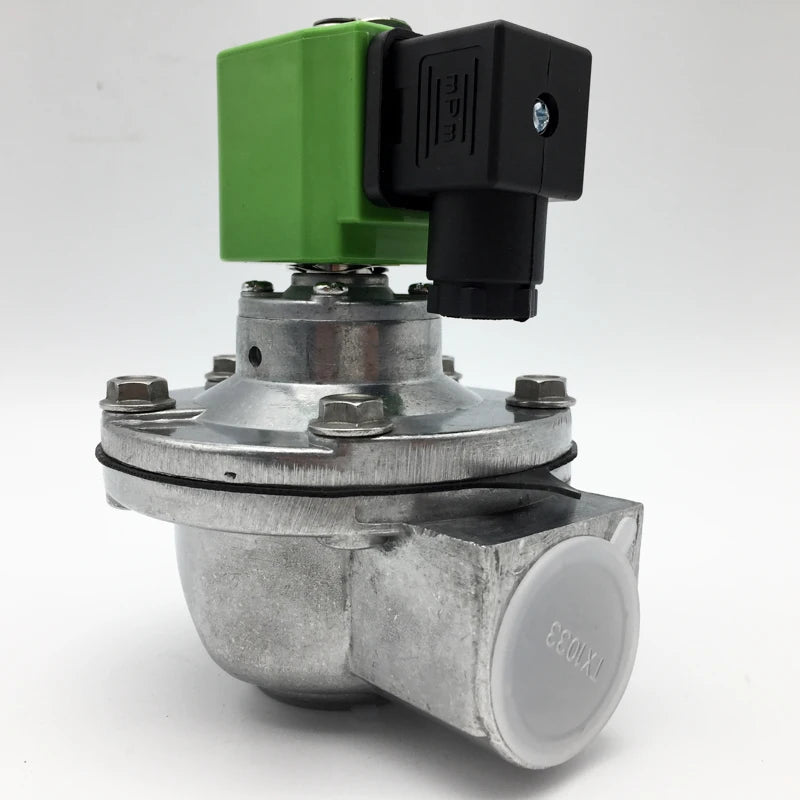

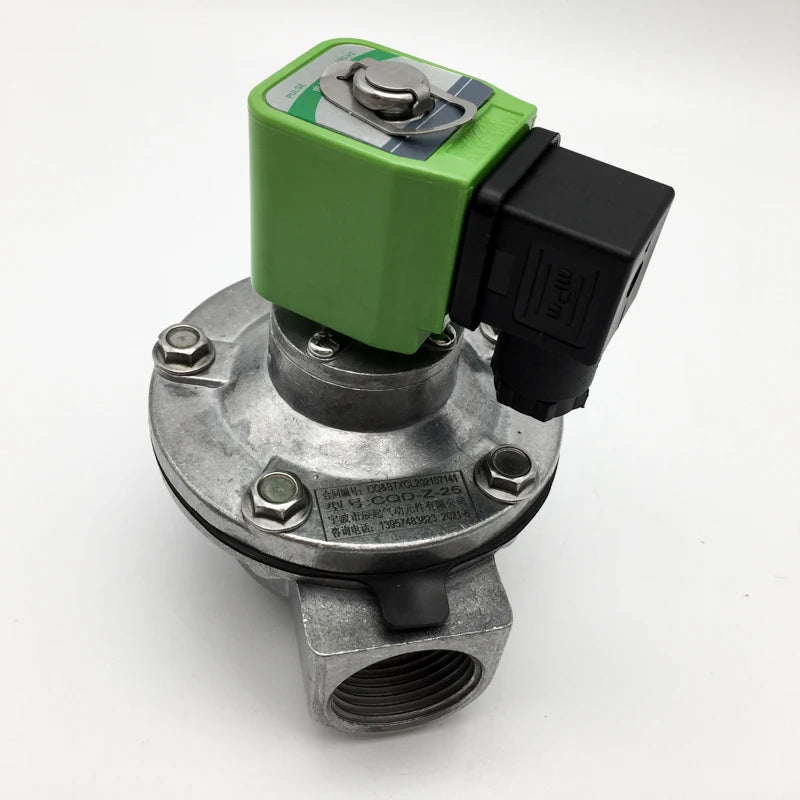

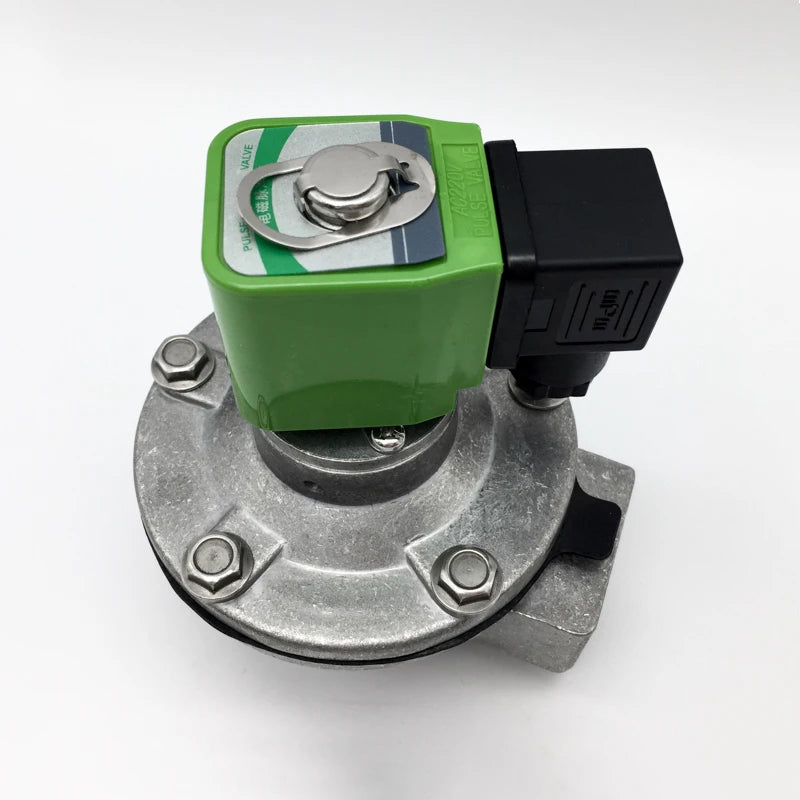

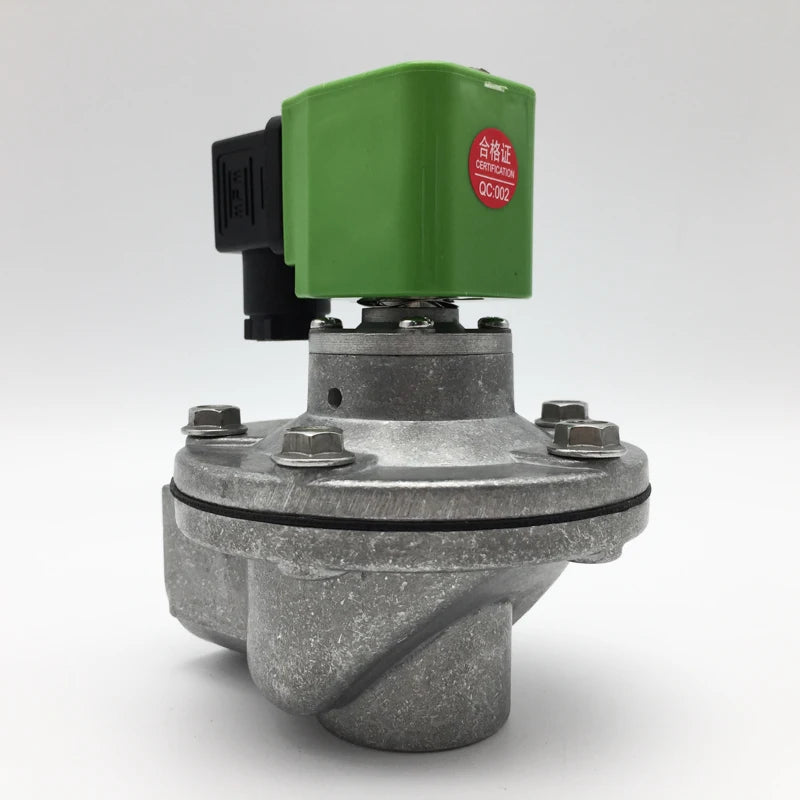

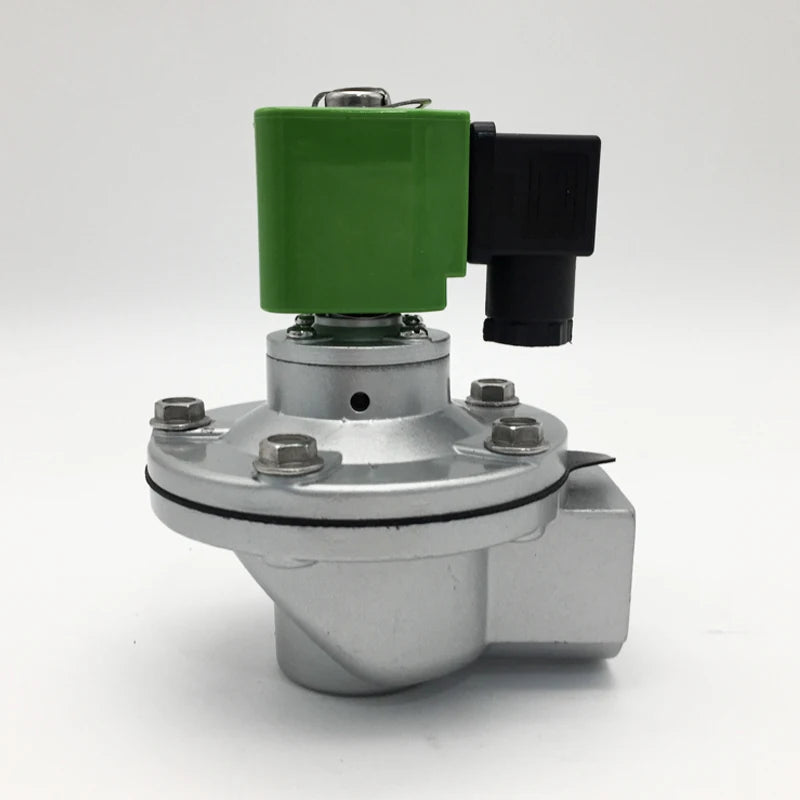

Name: CQD-Z-25 Pulse Jet Diaphragm Valve, 1" Right Angle 25 mm Orifice
Brand: AMG Hydraulic Engineering
SKU: 1601605688861
Price: 20.00 AUD
Availability: InStock

CQD-Z-25 Pulse Jet Diaphragm Valve, 1" Right Angle 25 mm Orifice

$20.00 $30.00

Shipping calculated at checkout.

Product Overview

The CQD-Z-25 pulse jet diaphragm valve is designed for efficient compressed air discharge in industrial dust collection systems. Its right-angle structure enables rapid air release, ensuring effective cleaning of filter bags and maintaining stable filtration performance.

With a 1" port size and 25 mm orifice, this valve is suitable for medium-duty pulse jet systems. Its solenoid-operated diaphragm design supports reliable operation in continuous industrial environments.

Technical Specifications

Specification	Value
Product Name	Pulse Jet Diaphragm Valve
Model	CQD-Z-25
Pump Type	Pulse Jet Valve
Structure	Right Angle
Open Flow Rate	System Dependent
Power Source	Electric (Solenoid)
Voltage	24V DC
Port Size	1"
Orifice Size	25 mm
Valve Type	Solenoid Diaphragm Valve
Connection Type	Threaded
Material	Aluminium Alloy
Operating Pressure	0.35 – 0.85 MPa
Temperature Range	-20°C to +80°C
Application	Dust Collection Systems
Warranty	1 Year

Key Features

Right-angle design for efficient air discharge
25 mm orifice for stable pulse performance
Solenoid diaphragm operation for reliable control
Compact structure for easy installation
Suitable for continuous industrial use

Typical Applications

Baghouse dust collectors
Industrial filtration systems
Cement and steel plants
Powder processing equipment
Bulk material handling systems

Shipping & Support

Fast dispatch world-wide shipping
Technical assistance available
1 Year warranty
