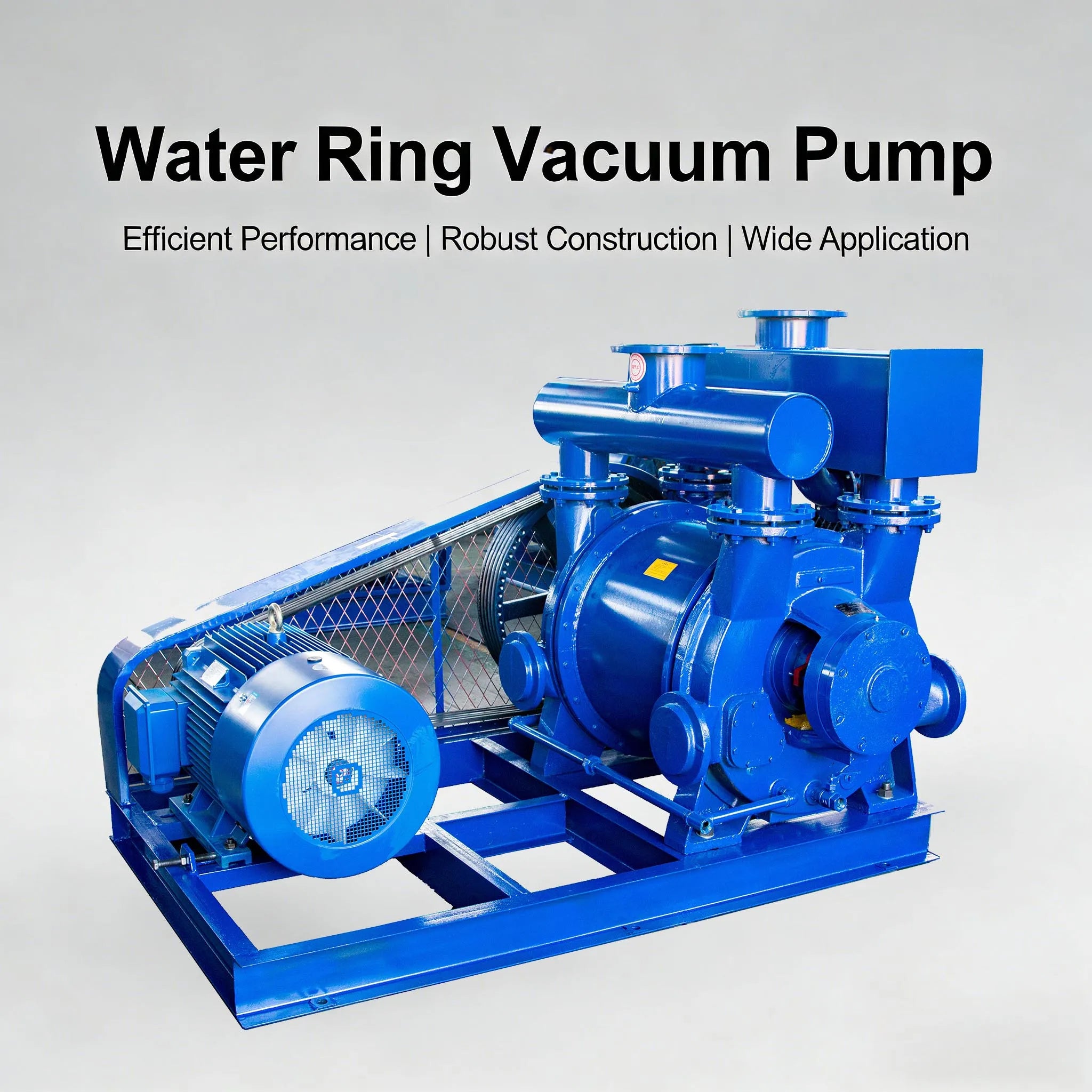

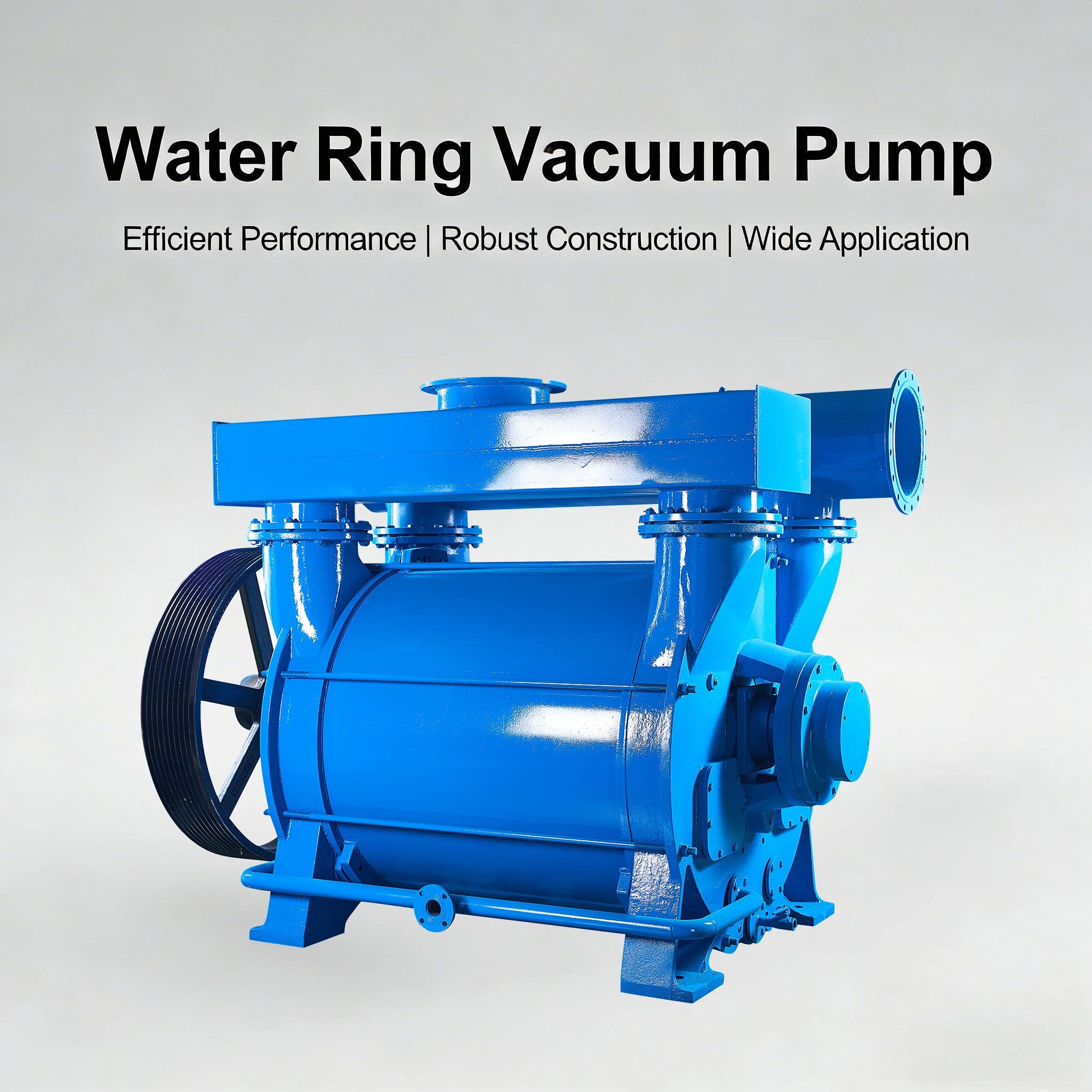

Name: 2BE Nash Liquid Ring Vacuum Pump, SS 4–11kW -0.098MPa 5000m³/h
Brand: AMG Hydraulic Engineering
SKU: 1601709989252
Availability: InStock

2BE Nash Liquid Ring Vacuum Pump, SS 4–11kW -0.098MPa 5000m³/h

$0.00 $3,391.00

Shipping calculated at checkout.

Product Overview

The 2BE Nash liquid ring vacuum pump is a robust industrial vacuum solution designed for filtration, air circulation, and process applications. Utilizing a liquid ring sealing mechanism, it delivers stable vacuum performance when handling wet gases, vapors, and condensable media.

With vacuum levels down to -0.098 MPa and flow capacity up to 5000 m³/h, this pump is ideal for heavy-duty industrial systems requiring continuous and reliable operation.

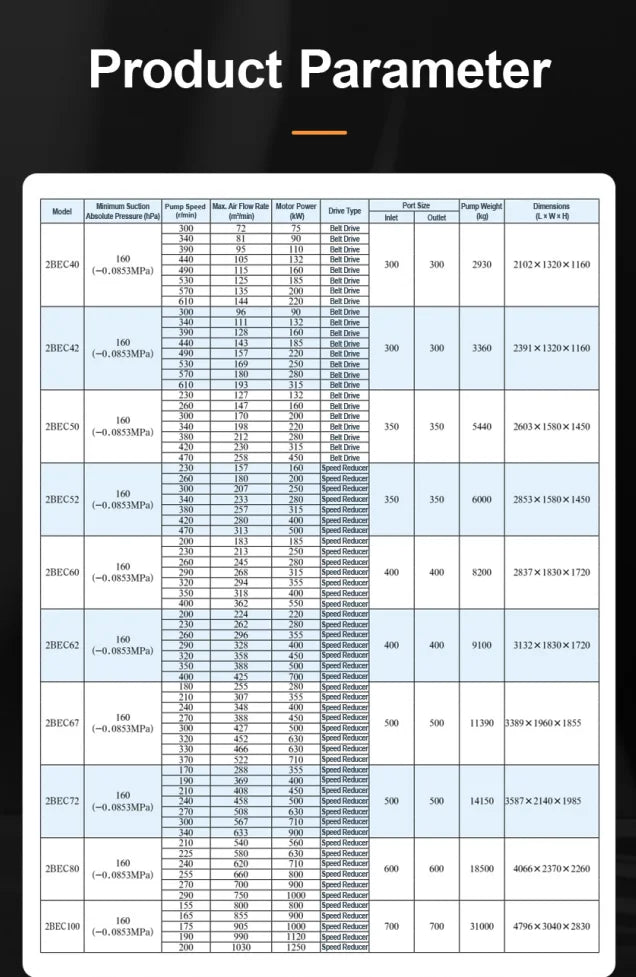

Technical Specifications

Specification	Value
Product Name	Liquid Ring Vacuum Pump
Model	2BE Series
Brand	Nash
Pump Type	Vacuum Pump
Structure	Liquid Ring
Pressure	Vacuum Pressure
Max Continuous Pressure	-0.098 MPa
Operating Pressure	-0.086 MPa
Flow Rate	2,000 – 10,000 L/min
Displacement	Up to 5000 m³/h
Speed	1450 RPM
Motor Type	Electric Motor
Power Source	Electric
Power Rating	4 – 11 kW
Voltage	380V
Pump Body Material	Stainless Steel / Cast Iron
Impeller Material	Stainless Steel 304
Sealing Material	Stainless Steel
Seal Type	Mechanical / Packing
Membrane Material	Viton
Outlet Size	DN125 / DN200 / DN350
Discharge Size	1-1/2"
Connection Type	Direct Coupling
Control Method	Fully Automatic
Noise Level	63 dB
Applicable Temperature	5 – 80°C
Suitable Media	Water / Oil Vapors
Surface Treatment	Spraying
Dimensions	Model dependent
Warranty	12 Months

Key Features

Liquid ring design for wet gas handling
Vacuum capability up to -0.098 MPa
High flow capacity up to 5000 m³/h
Stainless steel impeller for durability
Low noise operation (63 dB)
Suitable for continuous industrial use

Typical Applications

Industrial filtration systems
Air circulation systems
Chemical processing
Vacuum systems
Power plants
Manufacturing processes

Shipping & Support

Fast dispatch - Australia & World wide shipping
Technical assistance available
12-month warranty

This product is crafted with quality materials to ensure durability and performance. Designed with your convenience in mind, it seamlessly fits into your everyday life.

We strive to process and ship all orders in a timely manner, working diligently to ensure that your items are on their way to you as soon as possible.

We are committed to ensuring a positive shopping experience for all our customers. If for any reason you wish to return an item, we invite you to reach out to our team for assistance, and we will evaluate every return request with care and consideration.
